Ruger American Carbon Fiber Prefit Barrels

One of Two Contours (.990" Outside Diameter or 1.070" outside diameter). -- 2lbs 14oz @ 24"

Available in all of our calibers up to and including .375 for the .990" Contour.

Muzzle Threads Available in 1/2"x28, 5/8"x24 and 11/16"x24 for the .990" Contour.

All Calibers and Muzzle Threads available in the 1.070" Contour.

X-Caliber Barrel & MFG will not be held accountable for any damage to the carbon fiber by gunsmith or end user due to improper finishing or installation methods.

CARBON FIBER BOLT-ACTION PREFIT CONTOURS

#1. Ultralight/Lightweight - A) 1.000", B) 2.75", C) .990", D) 3.75", E) .990" (Disregarding Shank Diameter, same as #3 selection for Carbon Fiber Contoured Blank)

#2. Medium-Light - A) 1.000", B) 2.75", C) 1.070", D) 3.75", E) 1.070" (Disregarding Shank Diameter, same as #1 selection for Carbon Fiber Contoured Blank)

--If selecting 11° Crown on any Carbon Fiber barrel, please note that our Carbon Fiber Barrels cannot be threaded after-the-fact due to the construction design of the retaining cap.

If you are gun-savy and have a barrel vise, a Ruger American Barrel Nut Wrench and a Ruger Factory Barrel Nut, and the corresponding chambers’ Go gauge, you have everything you need to correctly install a barrel for your Ruger American action using a Ruger Factory-formfactor Barrel Nut.

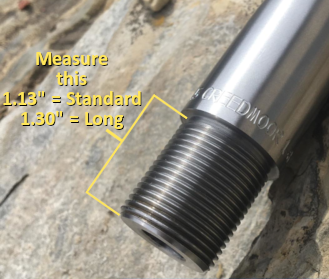

These Ruger American Pre-Fit Barrels are cut to Ruger factory OEM thread, shank and semi-shoulder dimensions, and will not work with barrel nuts intended for shank threads that are longer than Ruger factory.

1"x16TPI Barrel nut required, not included.

Need a Ruger American barrel nut? Head here!

Need a Muzzle Thread Protector?  Head here!

Need a Wrench for your Ruger American factory barrel nut/lock ring?  Head here>>.

No Shipping outside the US

*Please refer to the footer of this page for up-to-date production lead-time estimates.

Fluting: Adds 1 week to order lead time

Our Prefit 1MOA accuracy guarantee is 3 rounds at 100 yards with quality ammo and a skilled shooter. Like anything X-Caliber makes, we stand behind it 100%. If you do not think your barrel can shoot 1MOA groups or less, we will have you ship it back. We will inspect the barrel. If the barrel fails, we will build you another barrel and ship it to you at no cost. If the barrel passes all test, it will be shipped back to you at your expense.

For more information about our 1MOA accuracy guarantee and the conditions that apply, please refer to our FAQ or Conditions Pages.

***************************

X-Caliber Barrel Break-In

Procedure Guide

When breaking in your new X-Caliber Barrel, you should perform appropriate fire and clean cycles to normalize the bore surface. Each fire and clean cycle consists of a certain number of rounds fired (one to five) followed by a cleaning procedure (see below for reference), to be completed a certain number of times (1-25). These vary depending on the type of steel of the barrel, bore/groove diameter, velocity and pressure of any given round, etc. This is to be used as a guide. Since our barrels are hand-lapped, each barrel may break in a little differently. Some barrels may require more or less shots or cycles to break in than what is listed here.

416R Stainless Steel: Fire One Round then Clean: Do this 5-10 times. Fire Three Times then Clean: Do this 1 time. Fire Five Times then Clean: Do this 1 time.

4140 Chrome Moly: Fire Once Round then Clean: Do this 5-25 times. Fire Three Times then Clean: Do this 2 times. Fire Five Times then Clean: Do this 1 time.

 Example: For a 416R Stainless Steel barrel, you would fire one round, then perform the cleaning steps outlined below a total of five to ten times (shoot 1 round & clean, done 5-10 times) before starting the three shot cycle where you would fire three rounds and then clean as outlined below, then proceed to fire five rounds then clean, completing the break-in procedure.

Each Firing Cycle (1 shot, 3 shot or 5 shot) should be followed by cleaning the bore (see steps below for reference):

1.)    Using a one-piece, coated cleaning rod with a properly sized bore brush (wet with your favorite non-foaming bore solvent), carefully clean the bore from the chamber end toward the muzzle (3-5 passes is usually sufficient). If you cannot clean from the chamber end, be sure to use a bore-guide so as not to damage the crown or muzzle end of the rifling. Let sit 30-60 seconds before moving on to the next step.

2.)    Push a dry patch down the bore. (2-3 times)

3.)    Put a few of drops of oil on a patch and push that down the bore so as to leave a thin film of oil inside the bore.

4.)    Begin a new cycle: Fire your next round or rounds in your next firing cycle and repeat cleaning as necessary.

It is recommended to keep a written tally of your current step within the process so if you get distracted you will know where you left off.
