All dimensions listed will remain the same regardless of barrel length. For prefits or contoured blanks, the only aspect of a contour that changes with barrel length variations will be the length between C and E (or A and E for straight tapers). Also, the angle of the contour taper (if any) from C to E (or A and E) will change depending on barrel length.

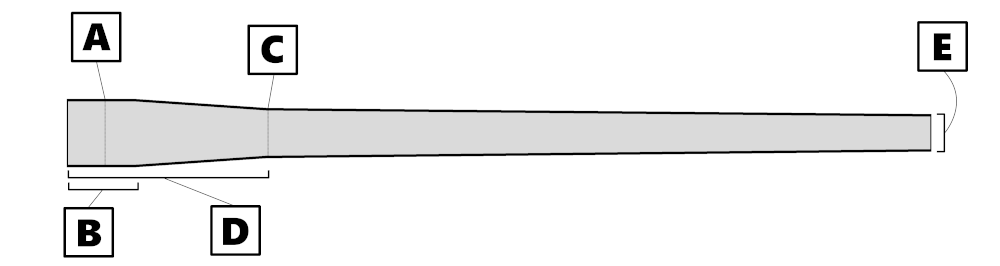

The muzzle diameter (E) is measured on a contoured barrel or blank and does not account for any muzzle threading. Threading a muzzle will cut a shoulder (typically) .625" back from the normal muzzle end and that shoulder (at the end of the threading) will be a slightly larger diameter than what is measured at E (except for on contour #12). Take this into account when selecting a contour that will have a threaded muzzle.
| SAVAGE BARREL CONTOURS - SMALL SHANK (Also Big Horn, Mossberg Standard and Rem783) | ||||||
| Barrel Type | Contour #/Name | A (Shank): | B: | C: | D: | E: |
| Savage Small Shank | #1 - Featherweight | 1.058 | 2.000 | .760 | 6.000 | .560 |
| Savage Small Shank | #2 - Light Sporter | 1.058 | 2.750 | .760 | 6.000 | .560 |
| Savage Small Shank | #3 - Standard Sporter | 1.058 | 2.750 | .800 | 6.000 | .600 |
| Savage Small Shank | #4 - Medium Sporter | 1.058 | 2.750 | .830 | 6.000 | .630 |
| Savage Small Shank | #5 - Heavy Sporter | 1.058 | 2.750 | .870 | 6.000 | .670 |
| Savage Small Shank | #6 - Bull Sporter | 1.058 | 2.750 | .900 | 6.000 | .700 |
| Savage Small Shank | #7 - Heavy Bull Sporter | 1.058 | 2.750 | 1.000 | 6.000 | .750 |
| Savage Small Shank | #8 - Light Target | 1.058 | 2.750 | *** | *** | .750 |
| Savage Small Shank | #9 - Standard Target | 1.058 | 2.750 | *** | *** | .820 |
| Savage Small Shank | #10 - Heavy Target | 1.058 | 2.750 | *** | *** | .875 |
| Savage Small Shank | #11 - MTU | 1.058 | 2.750 | *** | *** | .930 |
| Savage Small Shank | #12 - Straight Blank | 1.058 | *** | *** | *** | 1.058 |
| Savage Small Shank | #13 - Hunter | 1.058 | 4.000 | *** | *** | .750 |
| Savage Small Shank | #14 - Light Varmint | 1.058 | 5.000 | *** | *** | .875 |
| Savage Small Shank | #15 - Heavy Varmint | 1.058 | 5.000 | *** | *** | .900 |
| Savage Small Shank | #16 - Heavy Palma | 1.058 | 2.500 | 1.000 | 5.000 | .900 |
| Savage Small Shank | #17 - Standard Palma | 1.058 | 2.500 | .920 | 5.000 | .820 |
| Savage Small Shank | #18 - Light Palma | 1.058 | 2.500 | .900 | 5.000 | .750 |
| Savage Small Shank | #19 - Rem Standard | 1.058 | 3.000 | .760 | 7.000 | .660 |
| Savage Small Shank | #20 - Rem Sendero | 1.058 | 3.000 | .940 | 5.500 | .830 |
| Savage Small Shank | #21 - Rem Mag Sporter | 1.058 | 3.000 | .840 | 5.900 | .660 |
| Savage Small Shank | #22 - Savage Sporter | 1.058 | 4.000 | *** | *** | .590 |
| Savage Small Shank | #23 - Savage Magnum | 1.058 | 4.000 | *** | *** | .690 |
| Savage Small Shank | #24 - Savage Varmint | 1.058 | 4.000 | *** | *** | .810 |
| Savage Small Shank | #25 - Savage Bull | 1.058 | 4.000 | *** | *** | 1.000 |
| Savage Small Shank | #30 - M24/M40 | 1.058 | 3.000 | *** | *** | .900 |
| *NOTE: CONTOURS #22-25 ARE THE SAME AS #26-29 WITH THE EXCEPTION OF SHANK SIZES | ||||||
| SAVAGE BARREL CONTOURS - LARGE SHANK | ||||||
| Barrel Type | Contour #/Name | A (Shank): | B: | C: | D: | E: |
| Savage Large Shank | #1 - Featherweight | 1.120 | 2.000 | .760 | 6.000 | .560 |
| Savage Large Shank | #2 - Light Sporter | 1.120 | 2.750 | .760 | 6.000 | .560 |
| Savage Large Shank | #3 - Standard Sporter | 1.120 | 2.750 | .800 | 6.000 | .600 |
| Savage Large Shank | #4 - Medium Sporter | 1.120 | 2.750 | .830 | 6.000 | .630 |
| Savage Large Shank | #5 - Heavy Sporter | 1.120 | 2.750 | .870 | 6.000 | .670 |
| Savage Large Shank | #6 - Bull Sporter | 1.120 | 2.750 | .900 | 6.000 | .700 |
| Savage Large Shank | #7 - Heavy Bull Sporter | 1.120 | 2.750 | 1.000 | 6.000 | .750 |
| Savage Large Shank | #8 - Light Target | 1.120 | 2.750 | *** | *** | .750 |
| Savage Large Shank | #9 - Standard Target | 1.120 | 2.750 | *** | *** | .820 |
| Savage Large Shank | #10 - Heavy Target | 1.120 | 2.750 | *** | *** | .875 |
| Savage Large Shank | #11 - MTU | 1.120 | 2.750 | *** | *** | .930 |
| Savage Large Shank | #12 - Straight Blank | 1.120 | *** | *** | *** | 1.120 |
| Savage Large Shank | #13 - Hunter | 1.120 | 4.000 | *** | *** | .750 |
| Savage Large Shank | #14 - Light Varmint | 1.120 | 5.000 | *** | *** | .875 |
| Savage Large Shank | #15 - Heavy Varmint | 1.120 | 5.000 | *** | *** | .900 |
| Savage Large Shank | #16 - Heavy Palma | 1.120 | 2.500 | 1.000 | 5.000 | .900 |
| Savage Large Shank | #17 - Standard Palma | 1.120 | 2.500 | .920 | 5.000 | .820 |
| Savage Large Shank | #18 - Light Palma | 1.120 | 2.500 | .900 | 5.000 | .750 |
| Savage Large Shank | #19 - Rem Standard | 1.120 | 3.000 | .760 | 7.000 | .660 |
| Savage Large Shank | #20 - Rem Sendero | 1.120 | 3.000 | .940 | 5.500 | .830 |
| Savage Large Shank | #21 - Rem Mag Sporter | 1.120 | 3.000 | .840 | 5.900 | .660 |
| Savage Large Shank | #26 - Savage Big Sporter | 1.120 | 4.000 | *** | *** | .590 |
| Savage Large Shank | #27 - Savage Big Magnum | 1.120 | 4.000 | *** | *** | .690 |
| Savage Large Shank | #28 - Savage Big Varmint | 1.120 | 4.000 | *** | *** | .810 |
| Savage Large Shank | #29 - Savage Big Bull | 1.120 | 4.000 | *** | *** | 1.000 |
| Savage Large Shank | #30 - M24/M40 | 1.120 | 3.000 | *** | *** | .900 |
| *NOTE: CONTOURS #22-25 ARE THE SAME AS #26-29 WITH THE EXCEPTION OF SHANK SIZES | ||||||
| CONTOURED BLANK DIMENSIONS | ||||||
| Barrel Type | Contour #/Name | A (Shank): | B: | C: | D: | E: |
| Contoured Blank | #1 - Featherweight | 1.220 | 2.000 | .760 | 6.000 | .560 |
| Contoured Blank | #2 - Light Sporter | 1.220 | 2.750 | .760 | 6.000 | .560 |
| Contoured Blank | #3 - Standard Sporter | 1.220 | 2.750 | .800 | 6.000 | .600 |
| Contoured Blank | #4 - Medium Sporter | 1.220 | 2.750 | .830 | 6.000 | .630 |
| Contoured Blank | #5 - Heavy Sporter | 1.220 | 2.750 | .870 | 6.000 | .670 |
| Contoured Blank | #6 - Bull Sporter | 1.220 | 2.750 | .900 | 6.000 | .700 |
| Contoured Blank | #7 - Heavy Bull Sporter | 1.220 | 2.750 | 1.000 | 6.000 | .750 |
| Contoured Blank | #8 - Light Target | 1.220 | 2.750 | *** | *** | .750 |
| Contoured Blank | #9 - Standard Target | 1.220 | 2.750 | *** | *** | .820 |
| Contoured Blank | #10 - Heavy Target | 1.220 | 2.750 | *** | *** | .875 |
| Contoured Blank | #11 - MTU | 1.220 | 2.750 | *** | *** | .930 |
| Contoured Blank | #12 - Straight Blank | 1.220 | *** | *** | *** | 1.220 |
| Contoured Blank | #13 - Hunter | 1.220 | 4.000 | *** | *** | .750 |
| Contoured Blank | #14 - Light Varmint | 1.220 | 5.000 | *** | *** | .875 |
| Contoured Blank | #15 - Heavy Varmint | 1.220 | 5.000 | *** | *** | .900 |
| Contoured Blank | #16 - Heavy Palma | 1.220 | 2.500 | 1.000 | 5.000 | .900 |
| Contoured Blank | #17 - Standard Palma | 1.220 | 2.500 | .920 | 5.000 | .820 |
| Contoured Blank | #18 - Light Palma | 1.220 | 2.500 | .900 | 5.000 | .750 |
| Contoured Blank | #19 - Rem Standard | 1.220 | 3.000 | .760 | 7.000 | .660 |
| Contoured Blank | #20 - Rem Sendero | 1.220 | 3.000 | .940 | 5.500 | .830 |
| Contoured Blank | #21 - Rem Mag Sporter | 1.220 | 3.000 | .840 | 5.900 | .660 |
| Contoured Blank | #22 - Savage Sporter | 1.220 | 4.000 | *** | *** | .590 |
| Contoured Blank | #23 - Savage Magnum | 1.220 | 4.000 | *** | *** | .690 |
| Contoured Blank | #24 - Savage Varmint | 1.220 | 4.000 | *** | *** | .810 |
| Contoured Blank | #25 - Savage Bull | 1.220 | 4.000 | *** | *** | 1.000 |
| Contoured Blank | #26 - Savage Big Sporter | 1.220 | 4.000 | *** | *** | .590 |
| Contoured Blank | #27 - Savage Big Magnum | 1.220 | 4.000 | *** | *** | .690 |
| Contoured Blank | #28 - Savage Big Varmint | 1.220 | 4.000 | *** | *** | .810 |
| Contoured Blank | #29 - Savage Big Bull | 1.220 | 4.000 | *** | *** | 1.000 |
| Contoured Blank | #30 - M24/M40 | 1.200 | 3.000 | *** | *** | .900 |
| *NOTE: CONTOURS #22-25 ARE THE SAME AS #26-29 | ||||||
| (Are normally used to differentiate Savage contours to their appropriate Savage shank size) | ||||||
| REMINGTON 700 BARREL CONTOURS - Rem/Ages | ||||||
| Barrel Type | Contour #/Name | A (Shank): | B: | C: | D: | E: |
| RemAge | #1 - Featherweight | 1.062 | 2.000 | .760 | 6.000 | .560 |
| RemAge | #2 - Light Sporter | 1.062 | 2.750 | .760 | 6.000 | .560 |
| RemAge | #3 - Standard Sporter | 1.062 | 2.750 | .800 | 6.000 | .600 |
| RemAge | #4 - Medium Sporter | 1.062 | 2.750 | .830 | 6.000 | .630 |
| RemAge | #5 - Heavy Sporter | 1.062 | 2.750 | .870 | 6.000 | .670 |
| RemAge | #6 - Bull Sporter | 1.062 | 2.750 | .900 | 6.000 | .700 |
| RemAge | #7 - Heavy Bull Sporter | 1.062 | 2.750 | 1.000 | 6.000 | .750 |
| RemAge | #8 - Light Target | 1.062 | 2.750 | *** | *** | .750 |
| RemAge | #9 - Standard Target | 1.062 | 2.750 | *** | *** | .820 |
| RemAge | #10 - Heavy Target | 1.062 | 2.750 | *** | *** | .875 |
| RemAge | #11 - MTU | 1.062 | 2.750 | *** | *** | .930 |
| RemAge | #12 - Straight Blank | 1.062 | *** | *** | *** | 1.062 |
| RemAge | #13 - Hunter | 1.062 | 4.000 | *** | *** | .750 |
| RemAge | #14 - Light Varmint | 1.062 | 5.000 | *** | *** | .875 |
| RemAge | #15 - Heavy Varmint | 1.062 | 5.000 | *** | *** | .900 |
| RemAge | #16 - Heavy Palma | 1.062 | 2.500 | 1.000 | 5.000 | .900 |
| RemAge | #17 - Standard Palma | 1.062 | 2.500 | .920 | 5.000 | .820 |
| RemAge | #18 - Light Palma | 1.062 | 2.500 | .900 | 5.000 | .750 |
| RemAge | #19 - Rem Standard | 1.062 | 3.000 | .760 | 7.000 | .660 |
| RemAge | #20 - Rem Sendero | 1.062 | 3.000 | .940 | 5.500 | .830 |
| RemAge | #21 - Rem Mag Sporter | 1.062 | 3.000 | .840 | 5.900 | .660 |
| RemAge | #22 - Savage Sporter | 1.062 | 4.000 | *** | *** | .590 |
| RemAge | #23 - Savage Magnum | 1.062 | 4.000 | *** | *** | .690 |
| RemAge | #24 - Savage Varmint | 1.062 | 4.000 | *** | *** | .810 |
| RemAge | #25 - Savage Bull | 1.062 | 4.000 | *** | *** | 1.000 |
| RemAge | #26 - Savage Big Sporter | 1.062 | 4.000 | *** | *** | .590 |
| RemAge | #27 - Savage Big Magnum | 1.062 | 4.000 | *** | *** | .690 |
| RemAge | #28 - Savage Big Varmint | 1.062 | 4.000 | *** | *** | .810 |
| RemAge | #29 - Savage Big Bull | 1.062 | 4.000 | *** | *** | 1.000 |
| RemAge | #30 - M24/M40 | 1.062 | 3.000 | *** | *** | .900 |
| *NOTE: CONTOURS #22-25 ARE THE SAME AS #26-29 | ||||||
| (Are normally used to differentiate Savage contours to their appropriate Savage shank size) | ||||||
| RUGER PRECISION RIFLE (RPR) CONTOURS | ||||||
| Barrel Type | Contour & Barrel Length | A (Shank): | B: | C: | D: | E: |
| Ruger Precision Rifle | #1 - Ruger Tactical 20" | 1.000 | N/A | .900 | *** | .750 |
| Ruger Precision Rifle | #2 - Ruger Sendero 24" | 1.000 | N/A | .940 | *** | .830 |
| Ruger Precision Rifle | #3 - Ruger 24" | 1.000 | N/A | *** | *** | .750 |
| Ruger Precision Rifle | #4 - Ruger Hunter 22" | 1.000 | 4.000 | *** | *** | .750 |
| Ruger Precision Rifle | #5 - Ruger Heavy 26" | 1.000 | *** | *** | *** | 1.000 |
| RUGER AMERICAN PREFIT BARREL CONTOURS | ||||||
| Barrel Type | Contour #/Name | A (Shank): | B: | C: | D: | E: |
| Ruger American | #1 - Featherweight | 1.000/1.150 | 2.000 | .760 | 6.000 | .560 |
| Ruger American | #2 - Light Sporter | 1.000/1.150 | 2.750 | .760 | 6.000 | .560 |
| Ruger American | #3 - Standard Sporter | 1.000/1.150 | 2.750 | .800 | 6.000 | .600 |
| Ruger American | #4 - Medium Sporter | 1.000/1.150 | 2.750 | .830 | 6.000 | .630 |
| Ruger American | #5 - Heavy Sporter | 1.000/1.150 | 2.750 | .870 | 6.000 | .670 |
| Ruger American | #6 - Bull Sporter | 1.000/1.150 | 2.750 | .900 | 6.000 | .700 |
| Ruger American | #7 - Heavy Bull Sporter | 1.000/1.150 | 2.750 | 1.000 | 6.000 | .750 |
| Ruger American | #8 - Light Target | 1.000/1.150 | 2.750 | *** | *** | .750 |
| Ruger American | #9 - Standard Target | 1.000/1.150 | 2.750 | *** | *** | .820 |
| Ruger American | #10 - Heavy Target | 1.000/1.150 | 2.750 | *** | *** | .875 |
| Ruger American | #11 - MTU | 1.000/1.150 | 2.750 | *** | *** | .930 |
| Ruger American | #12 - Straight Blank | 1.000/1.150 | *** | *** | *** | 1.062 |
| Ruger American | #13 - Hunter | 1.000/1.150 | 4.000 | *** | *** | .750 |
| Ruger American | #14 - Light Varmint | 1.000/1.150 | 5.000 | *** | *** | .875 |
| Ruger American | #15 - Heavy Varmint | 1.000/1.150 | 5.000 | *** | *** | .900 |
| Ruger American | #16 - Heavy Palma | 1.000/1.150 | 2.500 | 1.000 | 5.000 | .900 |
| Ruger American | #17 - Standard Palma | 1.000/1.150 | 2.500 | .920 | 5.000 | .820 |
| Ruger American | #18 - Light Palma | 1.000/1.150 | 2.500 | .900 | 5.000 | .750 |
| Ruger American | #19 - Rem Standard | 1.000/1.150 | 3.000 | .760 | 7.000 | .660 |
| Ruger American | #20 - Rem Sendero | 1.000/1.150 | 3.000 | .940 | 5.500 | .830 |
| Ruger American | #21 - Rem Mag Sporter | 1.000/1.150 | 3.000 | .840 | 5.900 | .660 |
| Ruger American | #22 - Savage Sporter | 1.000/1.150 | 4.000 | *** | *** | .590 |
| Ruger American | #23 - Savage Magnum | 1.000/1.150 | 4.000 | *** | *** | .690 |
| Ruger American | #24 - Savage Varmint | 1.000/1.150 | 4.000 | *** | *** | .810 |
| Ruger American | #25 - Savage Bull | 1.000/1.150 | 4.000 | *** | *** | 1.000 |
| Ruger American | #26 - Savage Big Sporter | 1.000/1.150 | 4.000 | *** | *** | .590 |
| Ruger American | #27 - Savage Big Magnum | 1.000/1.150 | 4.000 | *** | *** | .690 |
| Ruger American | #28 - Savage Big Varmint | 1.000/1.150 | 4.000 | *** | *** | .810 |
| Ruger American | #29 - Savage Big Bull | 1.000/1.150 | 4.000 | *** | *** | 1.000 |
| Ruger American | #30 - M24/M40 | 1.000/1.150 | 3.000 | *** | *** | .900 |
| *NOTE: CONTOURS #22-25 ARE THE SAME AS #26-29 | ||||||
(Are normally used to differentiate Savage contours to their appropriate Savage shank size) The Area in front of the barrel nut will be 1.150" and the thread tenon portion (which houses the barrel nut and threads into the action) will be 1"x16TPI. | ||||||
--------------- --------------- --------------- --------------- --------------- --------------- ---------------
CARBON FIBER CONTOURED BLANK CONTOURS
#1. Lightweight - A) 1.220", B) 2.75", C) 1.070", D) 3.75", E) 1.070"
#2. Heavy - A) 1.250", full blank length (STRAIGHT CONTOUR)
#3. Ultralight - A) 1.220", B) 2.75", C) .990", D) 3.75", E) .990"
***
CARBON FIBER BOLT-ACTION PREFIT CONTOURS
#1. Ultralight/Lightweight - A) SHANK DIA*, B) 2.75", C) .990", D) 3.75", E) .990" (Disregarding Shank Diameter, same as #3 above)
#2. Medium-Light - A) SHANK DIA*, B) 2.75", C) 1.070", D) 3.75", E) 1.070" (Disregarding Shank Diameter, same as #1 above in Carbon Fiber Contoured Blank listed contours)
*Shank Diameters vary per design format, see below:
1.000" (Tikka/Ruger American with 1.150" Semi-Shoulder/RPR)
1.058" (Savage/Rem783/Bighorn)
1.062" (Rem700 "RemAge")
--------------- --------------- --------------- --------------- --------------- --------------- ---------------
| AR BARREL CONTOURS | ||||||

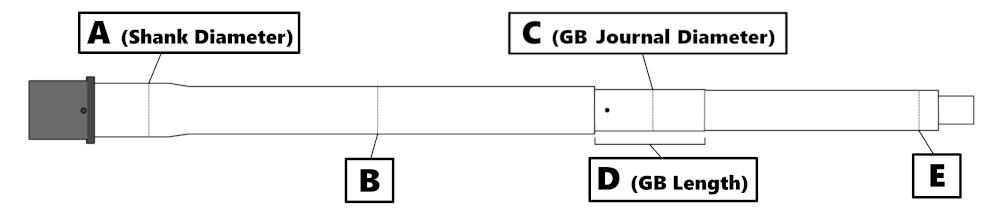

| Barrel Type | Contour Name | A (Shank): | B: | C: (GB Journal) | D: (GB length) | E: |
| AR15 | Spaghetti | .980 | .600 | (.750step) .625 | 1.00" | .600 |
| AR15 | Lightweight | .980 | .700 | (.875step) .750 | 1.00" | .700 |
| AR15 | SPR | .980 | .850 | .750 | 1.92" | .730 |
| AR15 | HBAR | .980 | .980 | .750 | 1.92" | .730 |
| AR15 | SOCOM Heavy | .980 | .850 | (.925step) .875 | 1.92" | .850 |
| AR15 | Heavy | .980 | .980 | .875 | 1.92" | .850 |
| AR15 | SOCOM Bull | .980 | .925 | (.975step) .936 | 1.92" | .925 |
| AR15 | Bull | .980 | .980 | .936 | 1.92" | .925 |
| AR10 | Spaghetti | *** | *** | *** | *** | *** |
| AR10 | Lightweight | 1.150 | .700 | (.875step) .750 | 1.00" | .700 |
| AR10 | SPR | 1.150 | .850 | .750 | 1.92" | .730 |
| AR10 | HBAR | 1.150 | .980 | .750 | 1.92" | .740 |
| AR10 | SOCOM Heavy | 1.150 | .850 | (.950 step) .875 | 1.92" | .850 |
| AR10 | Heavy | 1.150 | .980 | .875 | 1.92" | .850 |
| AR10 | SOCOM Bull | 1.150 | .925 | (.975step) .936 | 1.92" | .925 |
| AR10 | Bull | 1.150 | .980 | .936 | 1.92" | .925 |
In some instances, the gas block journal length (D) will be 1" long on contours where it would otherwise normally be 1.92" long.
This can be due to overall barrel length, as typically extremely short barrels will have the 1" long GB journal instead of the 1.92".
Some AR Barrel contours, notably the spaghetti and lightweight, will have a step near the muzzle (on threaded barrels) to increase diameter slightly to maintain enough of a contact surface for a muzzle device.
It's X-Caliber Barrel & MFG's
2024 Winter Holiday Sale!
Going on now!
Take advantage of these Yule-Tide Savings!
For a Limited Time, get
20% OFF All Barrels
&
30% OFF Muzzle Devices
***This promotion is going on NOW and will END on
Wednesday, December 25th, 2024 at 11:59:59PM MT!***
Take advantage of this sale while it is in effect and before it's over!
Get 20% Off Carbon Fiber Barrels, All-Steel Barrels and 30% Off Muzzle Brakes!
*Offer includes Barrels, Blanks and Muzzle Brakes only. Excludes all other items such as Bolts, Carriers, BCGs and Barrel Nuts.
If you truly wanted that premium precision edge for your rifle without paying premium prices, be sure to take advantage of this discount while it's active and before it's over!
Hours of Operation:
Monday through Thursday
6:00am through 3:00pm MST
Due to overwhelming call volume, we will not be performing order status checks on any orders still within their estimated lead-times. We will perform status checks on those at the end of or after the estimated lead-times. Email requests are faster as we're able to address them sooner than the phones.
Also due to overwhelming call volume, voice messages left with our Customer Support number may take quite some time to get a response. Our phone system sometimes overwrites voice messages left by customers so please either try again or send a message to sales@x-caliber.net (as this email address can be checked and responded to anywhere by anyone here), you're far more likely to get a prompt response with an email inquiry than via phones for the time being.
Before placing an order, please double-check to ensure all details are correct beforehand! Delays involving order change requests continue to increase.
Estimated Lead Times:
(ALWAYS UP-TO-DATE--Last Change 08/19/2024)
Unturned Blanks 2-4 Weeks*
Contoured Blanks 3-6 Weeks*
Bolt-Action Prefits 6-8 Weeks*
AR Barrels 7-10 Weeks*
Muzzle Devices/BART Tools 1-4 Weeks*
Carbon Fiber adds +1-2 weeks to base barrel/blank type lead time
Cryogenics adds +2-3 weeks to base barrel/blank type lead time
Cerakote adds +1-2 weeks to base lead time
Expedite Option reduces estimated lead time by approx. 50%-25%, not including 3rd party service lead times such as Cryogenics or Cerakote
*Wait times are just an estimate, as tools can break or go out-of-spec requiring replacement or machines can go down requiring servicing, extending our lead time by 6 to 8 weeks or more
Please read our Frequently Asked Questions (FAQ) Page for more information.
